filters-diffuse-01-f

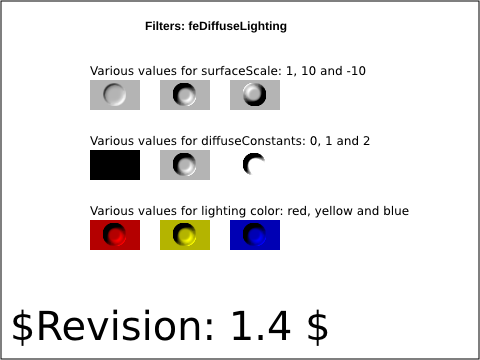

raster image of filters-diffuse-01-f.png raster image of filters-diffuse-01-f.png

Verify the basic operation of the feDiffuseLighting element. The test shows three rows of 3 images. Each rows tests a different aspect of the filter and shows the result of the filtering operation.

The first row shows the result of varying the surfaceScale attribute. The second row shows the result of varying the diffuse constant (kd) attribute. The last row shows the result of varying the lighting-color property.

The rendered picture should match the reference image.
