SVG 1.1 2nd Edition Test (svgweb): shapes-rect-03-t.svg

Specification link: 9.2 The 'rect' element

shapes-rect-02-t ← index → shapes-rect-04-f

shapes-rect-03-t.svg

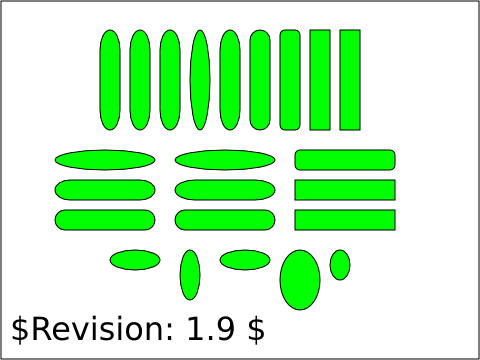

SVG Image	INKSCAPE 0.48 Image	INKSCAPE 0.49 Image	INKSCAPE 0.91 Image	PNG Image

Operator Script

Run the test. No interaction required.

Pass Criteria

The test has passed if:

There is no red visible
There is no green outside the black borders of each rectangle

Test Description

Tests rx and ry clamping and aliasing.
