Tests that contain the draft-watermark are under development and may be incorrectly testing a feature.

fonts-kern-01-t.svg

FAIL

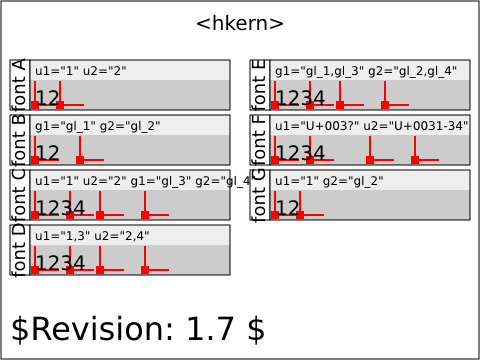

raster image of kern-01-t.png raster image of kern-01-t.png

Operator Script

Run the test. No interaction required.

Pass Criteria

The test is passed if for each of the seven subtests there is a series of black squares whose lower-left corner aligns with the centre of the corresponding small, red square as shown in the reference graphic.

Test Description

This test validates handling of the hkern element.

In all instances, a text element matching a font with hkern is displayed along with reference markers showing the expected glyph positioning.

The 'fontA' cell shows the string "12" with "fontA" for which there in a kerning pair defined with u1="1" and u2="2".

The 'fontB' cell shows the string "12" with "fontB" for which there in a kerning pair defined with g1="gl_1" and g2="gl_2", where "gl_1" has unicode="1" and "gl_2" has unicode="2".

The 'fontC' cell shows the string "1234" with "fontC" were the same kerning pair uses u1/u2 to match "12" and g1/g2 to match "34".

The 'fontD' cell shows the string "1234" with "fontD" were the same kerning pair uses u1/u2 to match "12" and "34" (u1/u2 are lists of character vales).

The 'fontE' cell shows the string "1234" with "fontE" were the same kerning pair uses g1/g2 to match "12" and "34" (g1/g2 are lists of names).

The 'fontF' cell shows the string "1234" with "fontF" were the same kerning pair uses u1/u2 to match "12" and "34" (u1/u2 are unicode ranges).

The 'fontG' cell shows the string "12" with "fontG" were for which there is a kerning pair with u1 matching "1" and g2 matching "gl_2".
