Tests that contain the draft-watermark are under development and may be incorrectly testing a feature.

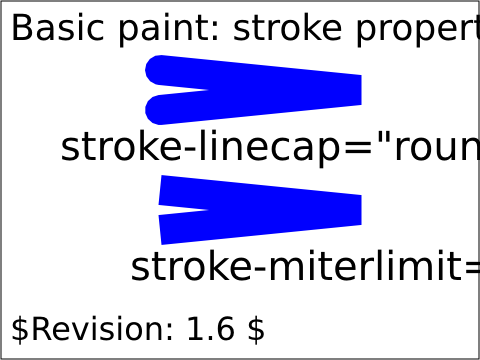

raster image of stroke-03-t.png raster image of stroke-03-t.png

Operator Script

Run the test. No interaction required.

Pass Criteria

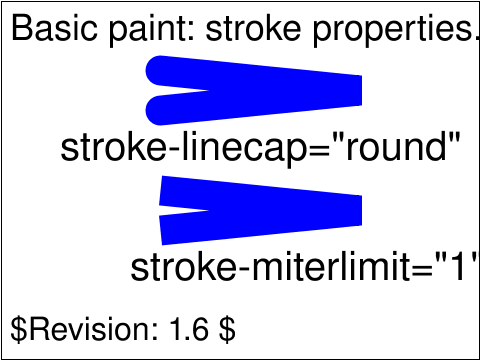

The two paths should be rendered as two blue line segments. The upper segment should have round end caps. The lower segment should be chopped off where the two line segments meet.

Test Description

This test checks the basic capability of handling the stroke properties ("stroke", "stroke-width" "stroke-linejoin", "stroke-linecap", "stroke-miterlimit") with straight-line path commands.
