A Vine Design—A Tiling Example

Inkscape has a Create Tiled Clones dialog that can be used to produce complex tilings. This tutorial covers preparing a base tile that can be used for such tilings. The objects in the base tile can overlap the tile boundaries to produce continuous designs, as shown below.

A sample tiling.
A 3 × 3 tiling of a base tile.

The steps to produce a repeated tiling are:

Procedure 1.7. Creating a Tile Pattern

  1. Set up the canvas.

    To begin, start Inkscape and set the drawing size to a width of 400 and a height of 580 pixels. Create a Grid with spacing of 10 pixels. Turn on snapping of nodes to Grid (and off snapping of bounding boxes to Grid). Don't forget to turn the Grid on.

  2. Create a tile prototype.

    We need to create a tile prototype that consists of a rectangle in a Group. Having a Group will allow adding new objects to the tile.

    Using the Rectangle Tool, create a rectangle 100 pixels wide by 160 pixels tall with the upper-left corner 50 pixels from the left edge and top. This will be the size of our base tile. Tile spacing will be determined by the bounding box of this rectangle. There are two definitions for the bounding box. The first, called the Visual bounding box, includes the Stroke width in the calculation while the second, called the Geometric bounding box, is calculated using just the nodes of an object. It will be easier to make tilings without worrying about the Stroke width, so select the Geometric bounding box in the Tools section of the Inkscape Preferences dialog (File icon Inkscape Preferences... (Shift+Ctrl+P)).

    So we can visualize the tiles, give the tiles a Stroke by either using the Fill and Stroke dialog or by using a Shift+Left Mouse Click on one of the color swatches in the Palette. You can also give the tile a Fill by simply clicking on a swatch.

    Now Group the tile by selecting the rectangle and using the Object icon Group (Ctrl+G) command.

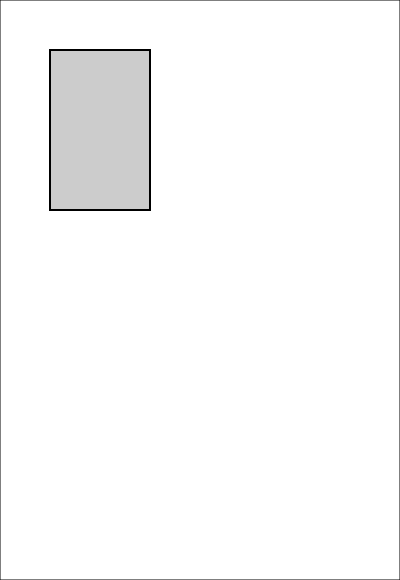

    Base tile.
    The base tile.
  3. Clone the tile.

    The next step is to clone the tile. This will give you a way to visualize the tile as it is decorated, making sure that objects that are near or overlap the boundary fit in properly.

    Bring up the Create Tiled Clones dialog (Edit Clone icon Create Tiled Clones... ).

    Create Tiled Clones dialog.
    Tile Clones dialog.

    Select P1: simple translation from the drop-down menu on the Symmetry tab. This will produce a rectangular array of tiles. Choose the Rows, columns option and set the number of columns and rows to three by entering 3 in both entry boxes. Make sure the base tile is selected in the drawing (Notification Region should state that a Group of 1 object is selected) and click on the Create button in the dialog.

    3x3 array of base tile.
    A 3 × 3 array of the base tile.
  4. Decorate the tile.

    It is time to draw the design on the base tile. Nine copies (clones) of the base tile have been created, including one on top of the original tile. It is necessary to modify the original tile if the copies are also to be modified. Select the original tile by clicking on any of the clones (Notification Region will indicate a clone is selected) and using Edit Clone icon Select Original (Shift+D). The Notification Region should now say Group of 1 object. The original tile is below a clone. Bring it to the top by using Object icon Raise to Top (Home) (click on the icon in the Tool Controls bar).

    Enter the Group by either double-clicking on the base tile or selecting Enter group #xxxx from the menu that pops up when you Right Mouse Click the base tile. The Layer name displayed in the Status Bar will start with #g indicating that a Group is open for editing (the Group has been temporarily been promoted to a Layer). While the Group is open, any object added to the drawing will be a member of the Group.

    Layer name showing group being edited.
    The Layer name in the Status Bar showing that a Group is open for editing.

    Now that the Group is open, add any details you want to the tile. Any detail you add to the base tile is automatically included in the cloned tiles. Our example has a continuous grapevine pattern. The main vine is a single line with the place and angle of the ends carefully adjusted for continuity at the base tile boundary. The Fill and Stroke of the base rectangle have been removed (the rectangle, itself, has not been deleted as it will be useful in the next step).

    3x3 array of decorated base tile.
    A 3 × 3 array of the decorated base tile. Note how some of the decoration extends outside the base tile (indicated by the black rectangle).
  5. Use the base tile for tiling.

    The newly created base tile can be used in several ways to decorate the Fill of another object. The easiest way is to use the base tile with the Create Tiled Clones dialog to create a simple tiling that is then clipped with the path of the object.

    1. Delete all the clones of the base tile. This can be done by either selecting each clone and deleting it or, quicker, by selecting the base tile and clicking on the Remove button at the bottom of the Create Tiled Clones dialog. (Note, the Remove button will only be enabled if you have selected the base tile.)

    2. Select base tile (if not already selected).

    3. With Create Tiled Clones dialog, create a tiling large enough to fill the object you wish to fill. Make sure Use saved size and position of the tile box is checked. The tiling will then use the saved dimensions of the base tile before it was decorated (the dimensions when the first tiling was made) rather than the current bounding box, which may include objects that extend outside the border. (Once an object has been tile cloned, Inkscape keeps a private record of the original tile size and position that can be used for later recloning.)

    4. If one of the base tile objects has partial transparency it may be necessary to delete (or move) the base tile. If the base tile is deleted, the links to the cloned tiles are broken but the cloned tiles remain.

    5. Group the tiled clones. Move the object to be filled above the grouped clones in z-order. Select both the object and the grouped clones and use the Object Clip Set command to make the clipping.

    Clipped tiles.
    An oval path has been used to clip the tiling. To get the oval border, the oval path was duplicated prior to making the clipping. The duplicated oval was then given a black Stroke and no Fill.

    The base tile can be used for a Pattern by selecting it and using the command Object Pattern Objects to Pattern (Alt+I). When the Pattern is first used, you will notice that the spacing is wrong if some of the objects extended outside the borders of the base tile. This can be corrected by using the XML Editor. In the svg:defs section, select the svg:pattern item that corresponds to the object with the pattern fill. This entry may be linked to another pattern. Follow the links until you find the entry with height and width attributes (and no other pattern links). Change the height and width attributes to the height and width of the base tile. Note that most SVG renderers will not draw areas that are outside the nominal area of the pattern (defined by the height and width attributes) despite setting the style attribute to overflow:visible. Batik (which is used for the PDF version of this book) has rendering problems with this type of pattern. Evince, a popular Linux PDF displayer, also has a different bug rendering Patterns. Acroread will display Patterns correctly.

    Base tile used for pattern.
    The base tile has been converted to a Pattern that has been used to fill the oval. The pattern's internal height and width attributes have been adjusted to match that of the base tile.

    For some purposes, it may be preferred to have the entire design within the edges of the base tile. This is a bit tricky.

    1. Unlink all the clones by selecting the clones and using Edit Clone icon Unlink Clone (Shift+Alt+D).

    2. Delete the center clone of the 3 × 3 clone array.

    3. Select base tile and move it to the center (it may be under a clone). Use the Move tab of the Transform dialog to precisely move the base tile (by its width and height). The internal information about the position and size of the base tile that is used for cloning is preserved.

    4. For each object that overlaps the base tile but is not part of it, enter the Group it belongs to (double-click on the Group), cut the object (Edit icon Cut (Ctrl+X)), enter the Group of the base tile, and paste the object in place (Edit icon Paste In Place (Ctrl+Alt+V)). Pay careful attention to the Notification Region to keep track of what is selected and the Layer information in the Status Bar to see which Group is open.

    5. Delete the clones with the leftover objects.

      Base tile.
      The base tile with all the necessary decorations, before clipping.

      At this point, one could convert the base tile to a Pattern (see above). There are still problems with some SVG renderers that can be worked around by modifying the transform attribute with a negative translation in x and y for the Group in the Pattern. Note that Inkscape ignores this transform attribute.

    6. In the opened base tile group, select the rectangle and cut it. Exit the group and paste it in place. Select both the base tile group and the rectangle and then use the Object Clip Set command. The base tile is now finished. You can translate it back to its original position using the Transform dialog.

      Base tile clipped.
      The base tile, clipped and moved back to its original position.
    7. The base tile can now be used in a tiling.

      A tiling.
      A tiling with the clipped base tile.

    Using the clipped base tile has one main drawback. There may be drawing artifacts where tiles abut. This is due to weaknesses in the drawing algorithms that don't properly handle cases where the tile's edge doesn't align with a screen pixel or other display quanta.

    Note that the clipped tile cannot be used directly as a Pattern. To create a pattern, first convert the tile into a bitmap (Edit icon Make a Bitmap Copy (Alt+B)), then use that bitmap for the pattern. This method may also create drawing artifacts.

    A tiling pattern.
    An oval filled with a bitmap pattern. The pattern was created by first turning the base tile into a bitmap. Note the drawing artifacts between the tiles (e.g., PNG web version).

This tutorial has covered creating the most simple base tile. More complex base tiles with different symmetries can be just as easily created, as shown next.

Tiling with a p31m symmetry.
A tiling with the P31M symmetry.
Double tiling.
A P1 tiling with a base tile created by the CMM tiling of a smaller base tile.
